Serial No.:
12S637Y
Price (ex work):
POA
Description:
SPECIFICATION JHC 12S
YEAR 2014
Standard work rest (diameter) 1 – 25mm
Special work rest (diameter) 25 – 40mm

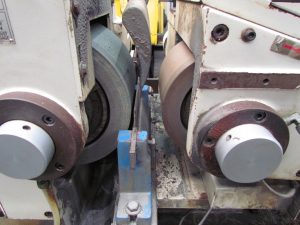

Grinding wheel size (dia x width x bore) 305 x 150 x 120mm 205 x 150 x 90mm 1900rpm
Regulating wheel size (dia x width xbore)
Grinding wheel speed
Regulating wheel speed 20 – 337rpm (7 steps) 10-300rpm variable speed
Grinding wheel motor 7.5HP
Regulating wheel motor 1HP 2HP
Hydraulic pump motor 1HP
Coolant pump motor 1/8HP
Regulating wheel feed on handwheel 4mm/rev – 0.02mm (Gra)
Table feed on handwheel 7mm/rev – 0.05mm (Gra)
Table micro feed on handwheel 0.2mm (rev) – 0.001mm (Gra)
Dressing handwheel 1.25mm (rev) – 0.01mm (Gra)
Regulating wheel tilt angle +5 Degrees ~ -3 Degrees
Regulating wheel swivel angle ±5 Degrees
Approx weight 1600kgs 1750kgs
Floor space (L x W x H) 1800 x 1400 x 1400mm
PRICE -POA
