Serial No.:
Price (ex work):
POA

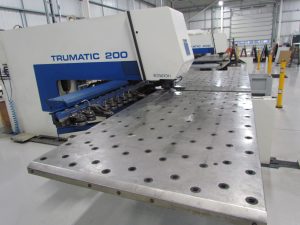

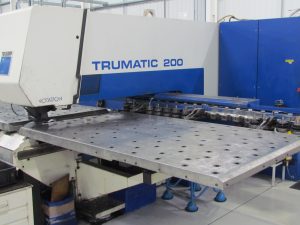

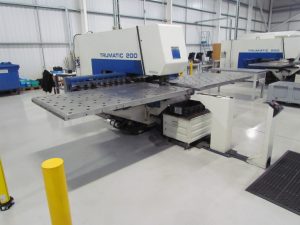

Description:

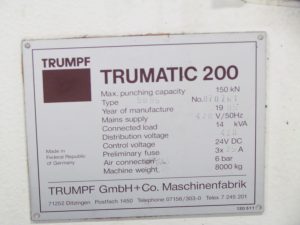

TECHNICAL SPECIFICATIONS
| DIMENSIONS | TC 200R |
| MAX. WORKING RANGE (W/O REPOSITIONING): | 1280X2070MM |
| MAX WORKPIECE WEIGHT: | 150KG |
| SPACE REQUIREMENT: | 23 m2 (not incl. safety zone) 22 m2 (incl. safety zone) |
| MAX. STROKE RATE: | 420/MIN/1300/MIN (ENGRAVING TOOL) |
| MAX. SHEET THICKNESS: | 6.4 MM |
| MAX. PUNCHING TONNAGE: | 150kN |
| MACHINE WEIGHT: | APPROX. 8000KG |
| CONTROL SYSTEM WEIGHT: | APPROX 500 KG |
| TC 200R | ||
| DIMENSIONS | MACHINE HEIGHT
MAX. PUNCH DIAMETER WORKING HEIGHT MAX. CLEARANCE BENEATH STRIPPER PARTS REMOVAL:
DEAD AREA: |
2435 MM (WITH HOOD SWUNG UP)
76.2 MM 1020MM 37MM
PUSHOUT CHUTE: 500X200MM (XxY) Programmable support table (option): 500x550mm (xXy) 72X194MM |
| SPEEDS | X AXIS:
Y AXIS: C AXIS: |
60 M/MIN
40 M/MIN 360°/S |
| DRIVE SYSTEM | ALL AXES: | MAINTENANCE-FREE AC MOTORS |
| ACCURACIES* | SMALLEST PROGRAMMABLE INCREMENT:
POSITIONING ACCURACY **: AVERAGE REPEATABILITY **: SMALLEST PROGRAMMABLE ROTATION ANGLE: |
0.001MM
+/-0.1MM
+/-0.03MM
0.001° |

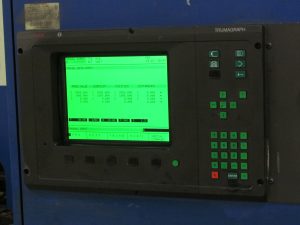

| CONTROL | BOSCH CC220 | |
| CONNECTED LOADS | ELECTRIC:
PNEUMATIC: |
APPROX. 1.5-6.5S
8Nm3/h AT 6 BAR |

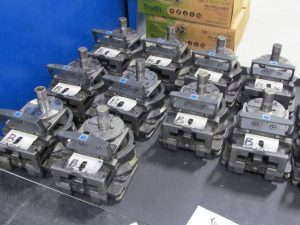

| LINEAR MAGAZINE | TOOL CHANGE TIME:
NO. OF TOOL STATIONS: NUMBER OF CLAMPS: |
APPROX 1.5-6.5S
15 PLUS 2 CLAMPS 2, OPTIONALLY 3 OR 4 |
