Serial No.:
Price (ex work):
POA
Description:

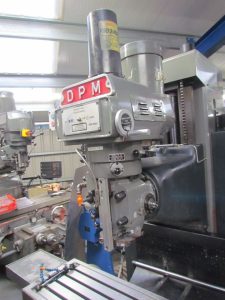

3 AXIS CNC BED
MILL
MX2E CONTROL
FULL GUARD NL
YEAR 1998

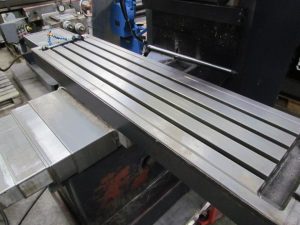

| TABLE SIZE | 14 X 54” | |
| TEE SLOTS | 5/8” | |
| LONGITUDUNAL TRAVEL (X AXIS) | 31” | |
| CROSS TRAVEL (Y AXIS) | 20” | |
| HEAD TRAVEL (Z AXIS) | 23” | |
| QUILL TRAVEL | 5” | |
| QUILL DIAMETER | 4 1/8” | |
| MAX THROAT DEPTH | 19.5” | |
| QUILL FEEDS | .0015” .003” .006” | .038” .076” .15MM |
| SPINDLE FEEDS | LOW 70-460 RPM | HIGH 460-3600 RPM |
| SPINDLE TAPER | ISO 40 | |
| SPINDLE NOSE TO TOP OF TABLE | 5-24.5” | 127-622MM |
| HEAD TILT LEFT TO RIGHT | 45 DEGREES-0-45 DEGREES | |
| FLOOR AREA (LXWXH) | 2600 X 1720 X 2225MM | |
| MAX TABLE LOAD | 450KGS | |
| APPROX. NET WEIGHT | 2100KGS |
