Serial No.:
7634
Price (ex work):
POA
Description:

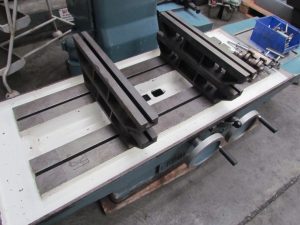

Table area 550x1370mm
Clamping area 410x1130mm
Quill stroke 270mm
Head traverse 640mm
Spindle 2x rates
Longitudinal setting on the table 1300mm
Cross setting 65mm
Column to centre line of spindle 450mm
Spindle to table max 1200mm
Spindle to table min 500mm
Capacity with SUNNEN AN HEAD 63-152 mm
With Robbi heads other sizes

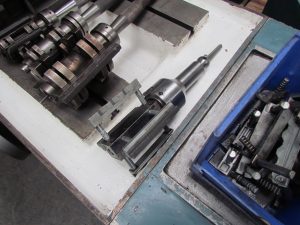

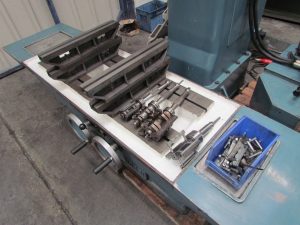

Equipped with: oil pump, honing heads including SUNNEN type AN, work supports
- Quick removal / installation of the honing head.

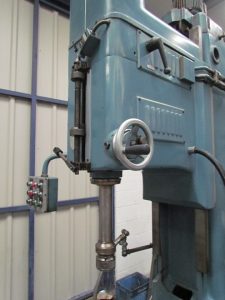

- Telescopic spindle for quick selection of the hone head working position by height.

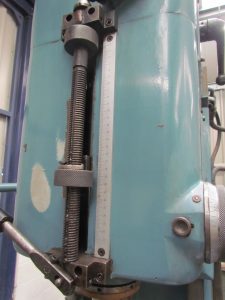

- Quick adjustment of the hone head upper and lower end positions during honing.
- Ability to easily adjust the hone head.
Rigid feeding expansion of the stones with automatic or manual adjustment, the possibility of using different hone heads, including SUNNEN
- Specs
| Tool Series | AN Series |
| Shank Length (in) | 6 |
| Min Diameter (in) | 2.5 |
| Shank Length (mm) | 152 |
| Max Diameter (in) | 6.5 |
| Min Diameter (mm) | 63.5 |
| Max Diameter (mm) | 165 |
| Abr Length (in) | 4 |
| Abr Length (mm) | 102 |
The honing process: installation of hone head, adjustment of end points, honing, diameter measurement
