Serial No.:
1101-85
Price (ex work):
SOLD
Description:

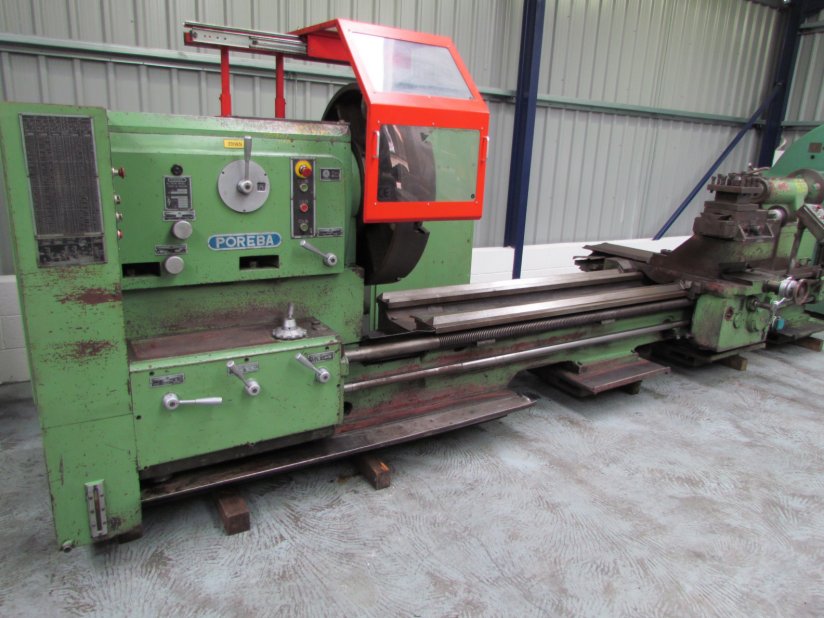

Poreba Model TR135 B2 Heavy duty gap bed centre lathe SERIAL NUMBER
1101-85 SWING OVER BED 1350MM SWING IN GAP 1650MM SWING OVER CROSS SLIDE 1000MM DISTANCE BETWEEN CENTRES 3000MM SPINDLE BORE 120MM LOAD BETWEEN CENTRES 9000KGS WITH 1 STEADY 10500KGS WITH 2 STEADYS
12000KGS MAX LOAD ON CHUCK 2000 KGS SPINDLE SPEEDS 5-500RPM MAIN MOTOR 34/49KW FEED ALONG AND CROSS EQUIPPED WITH; RAPIDS TO THE SADDLE POWER TOPSLIDE SCREW CUTTING TAPER TURNING. STEADIES X 3 PLEASE NOT 2 SETS OF ROLLERS BETWEEN 3 STEADIES. MACHINE MANUAL CHUCK GUARD
